Orbital riveting machine
Advantages
- Less riveting force required
- Minimum stress on the rivet material
- Even flow of the material
- Smooth finish to the rivet head
- Precise control of the process
- Quieter operation
- Simple & easy tooling setup
- Longer tool life
- Low maintainance
Application
- Free rotating joints
- Clamped joints
- Torque resisting joints
Uses
- Electrical switch gear
- Clutch & brake liners
- Locks, latches & hinges
- Home decor items
- Baggage & toys
- Chains & rollers
- Fans assemblies
- Hand tools
- Non-metal assemblies
- Defence products
- Automobile components
- Electrical components
- Surgical instruments

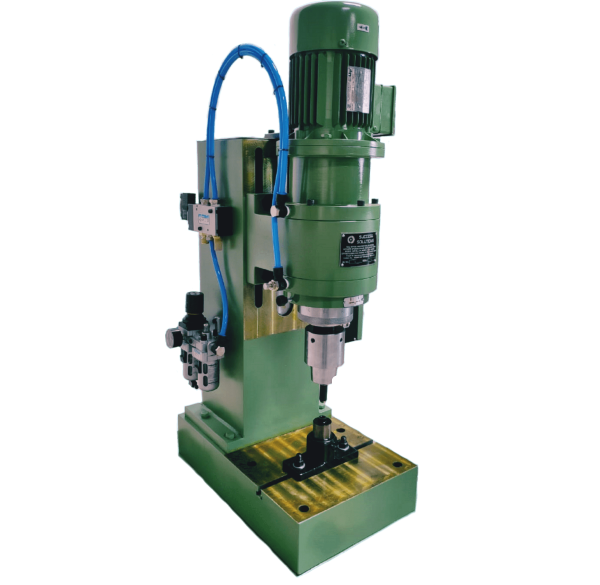

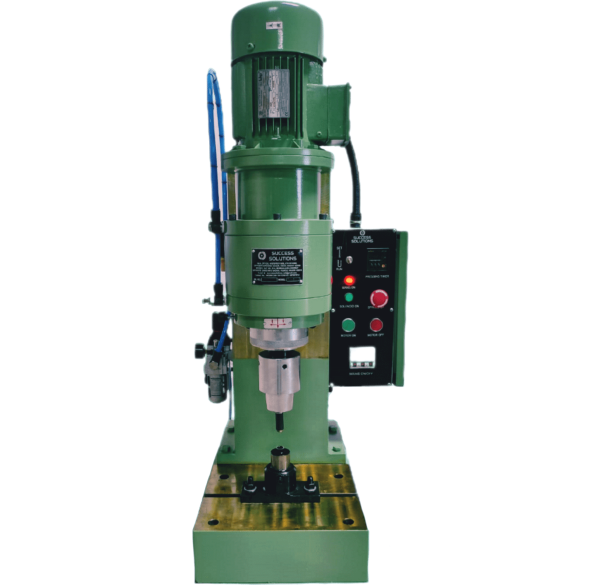

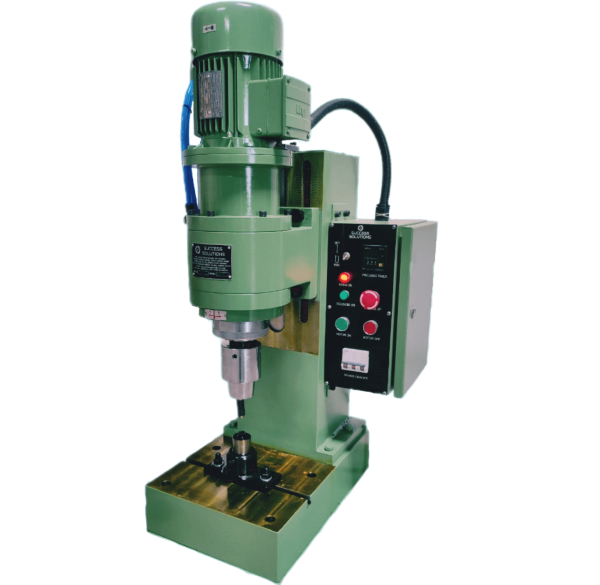

Pneumatic Orbital Riveting Machine
| MODEL | CAPACITY | STROKE | THROAT DEPTH | SHUT HEIGHT | MOTOR | RATED AIR PRESSURE | OVERALL SIZE (LWH) | APPROX. WEIGHT |
|---|---|---|---|---|---|---|---|---|
| SSP050R | 500 kg | 30 mm | 110 mm | 185 mm | 0.5 HP 0.37 kW |
2-6 kg/cm2 | 500 x 400 x 900 | 120kg |
| SSP100R | 1,000 kg | 45 mm | 140 mm | 220 mm | 1.0 HP 0.75 kW |
2-6 kg/cm2 | 550 x 470 x 1080 | 225kg |
| SSP150R | 1,800 kg | 45 mm | 200 mm | 270 mm | 1.5 HP 1.1 kW |
2-6 kg/cm2 | 600 x 530 x 1320 | 380kg |

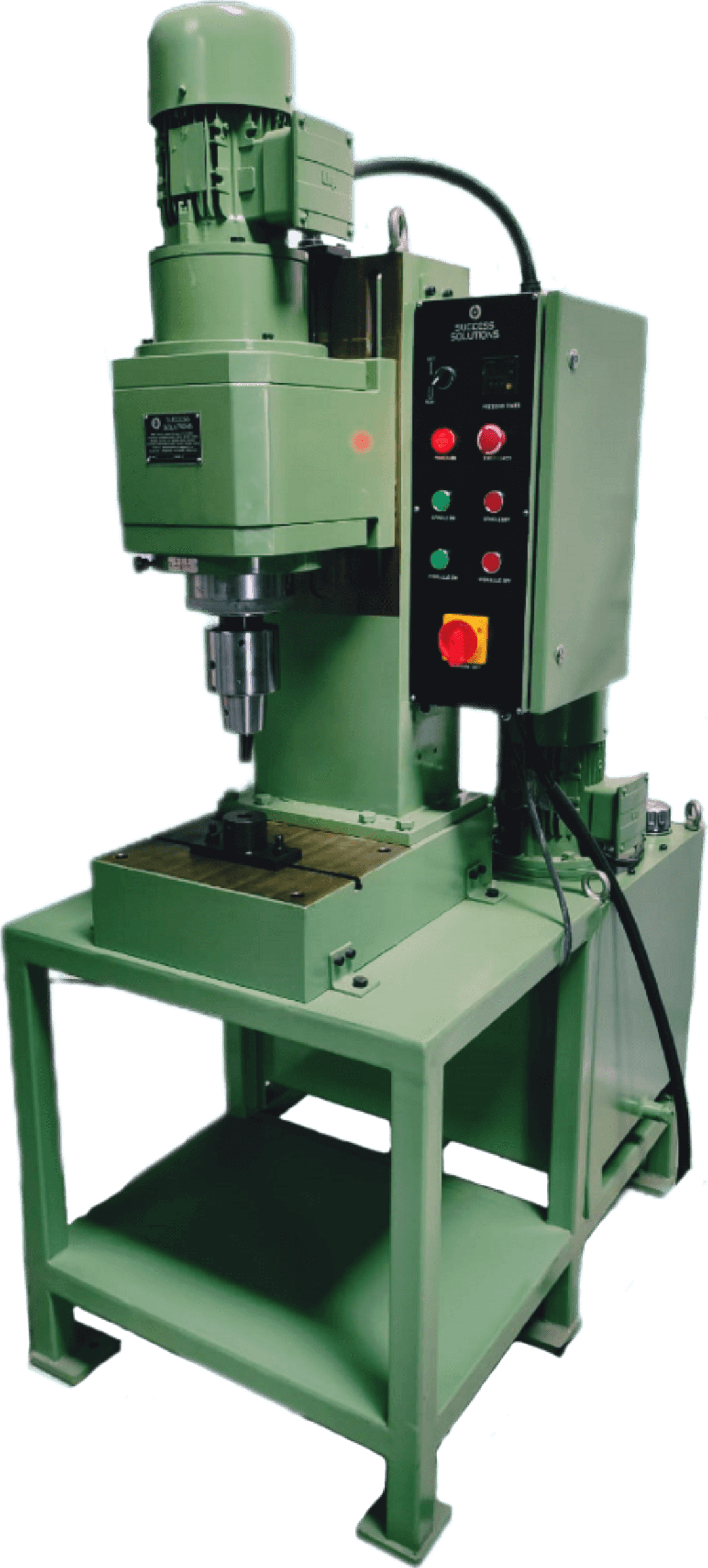

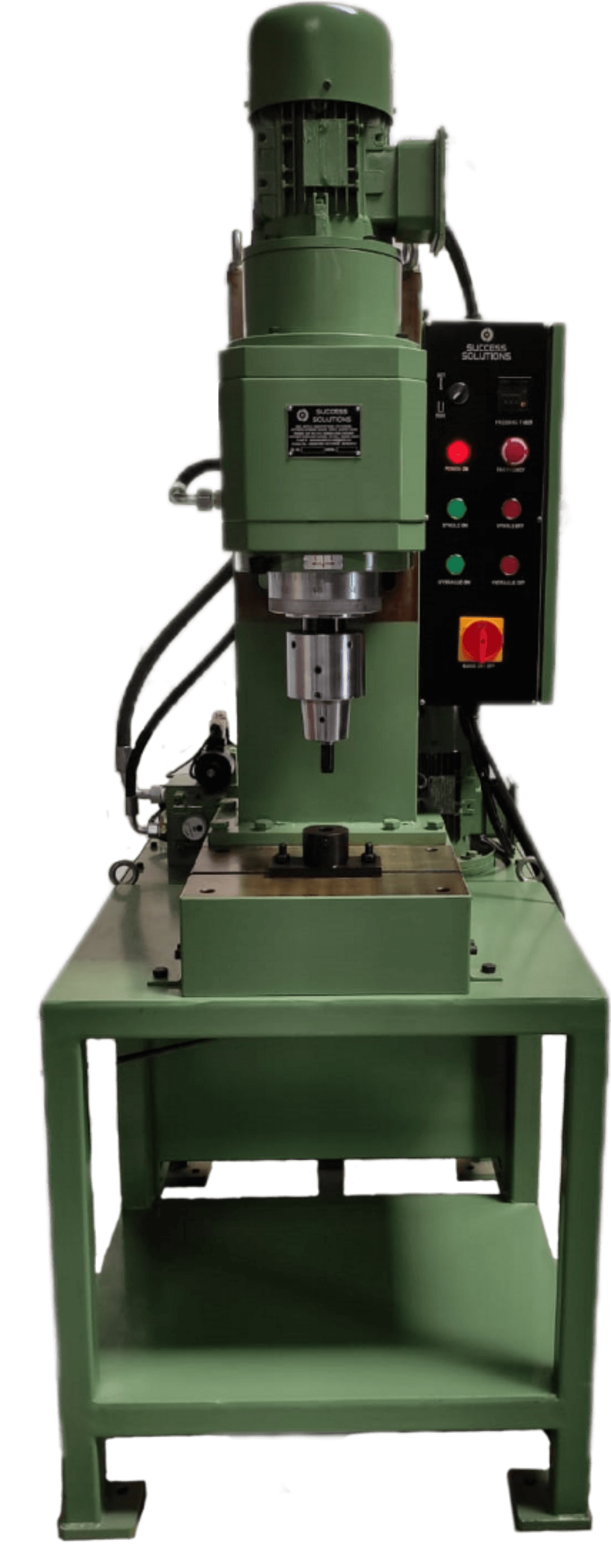

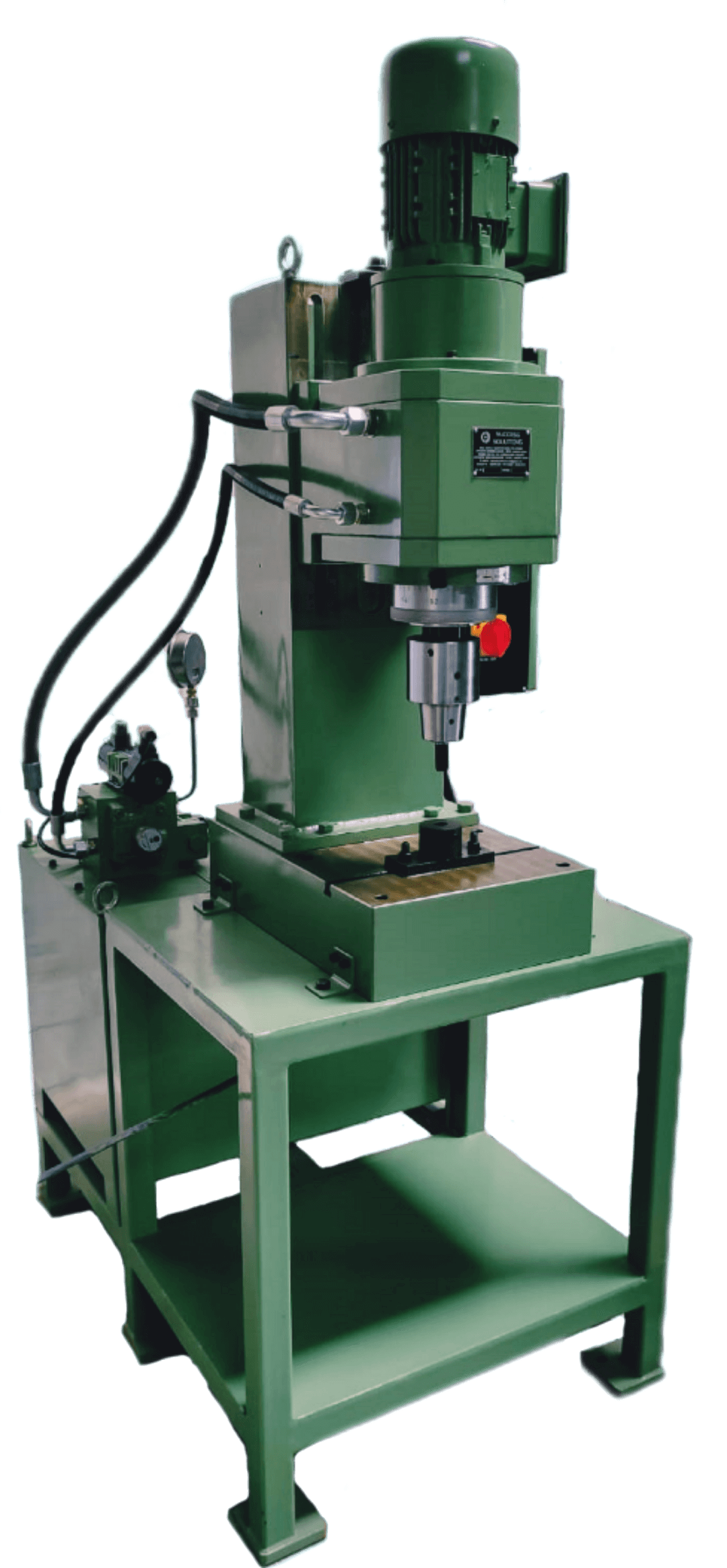

Hydraulic Orbital Riveting Machine
| MODEL | CAPACITY | STROKE | THROAT DEPTH | SHUT HEIGHT | MOTOR | RATED AIR PRESSURE | OVERALL SIZE (LWH) | APPROX. WEIGHT |
|---|---|---|---|---|---|---|---|---|
| SSH350R | 3,500 kg | 45 mm | 200 mm | 245 mm | 1.5+3.0 HP 1.1+2.2 kW |
10-50 kg/cm2 |
1120 x 750 x 2100 | 690 Kg (w/ooil) |
| SSH500R | 5,000 kg | 45 mm | 200 mm | 265 mm | 3.0+3.0 HP 2.2+2.2 kW |
10-80 kg/cm2 |
1325 x 750 x 2365 | 1040 Kg (w/ooil) |
Customisable attachments

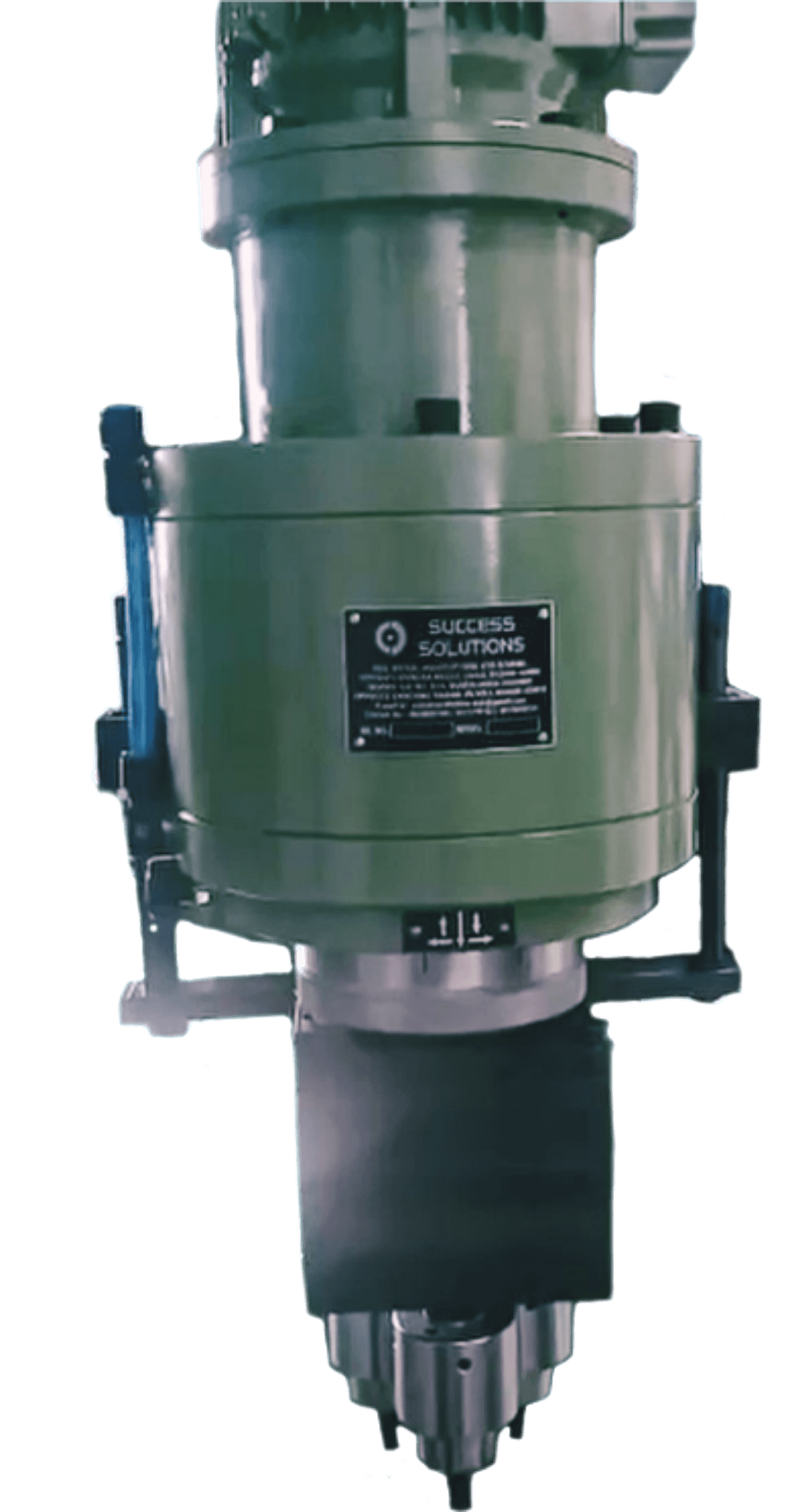

Multi spindle gear box

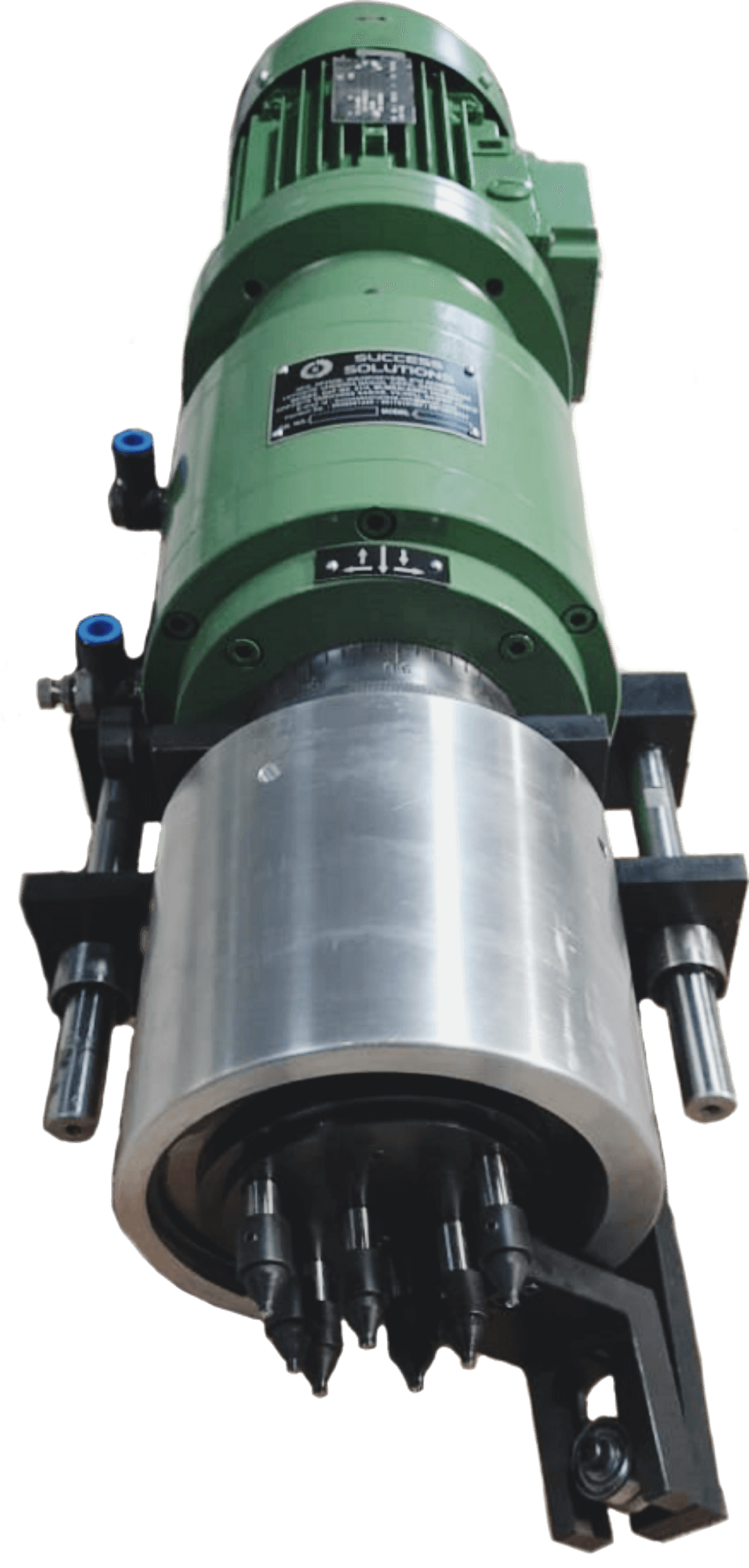

Multi point tool holder

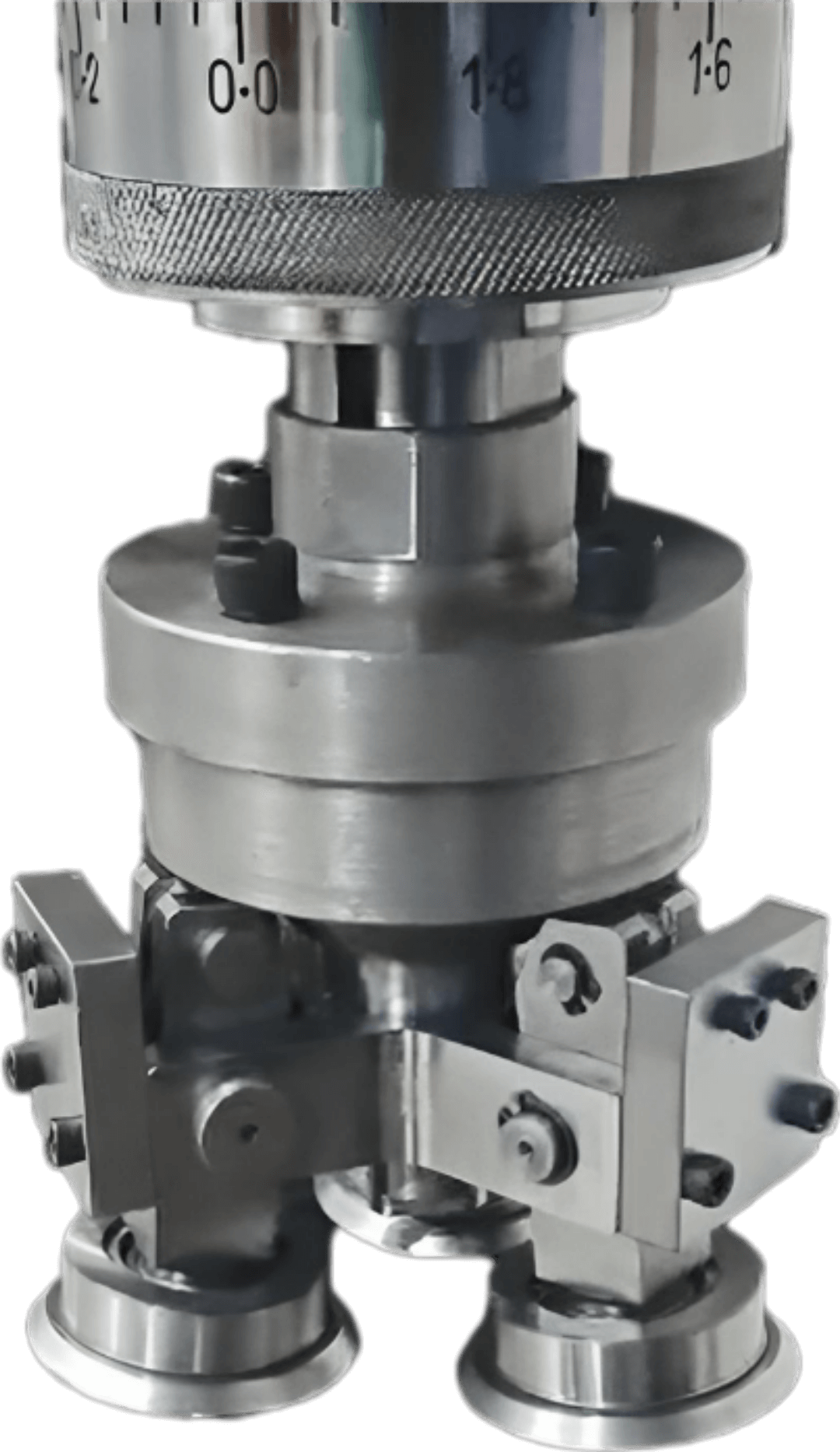

Seaming (Roll Forming) Attachments
Customised Orbital Riveting Machines

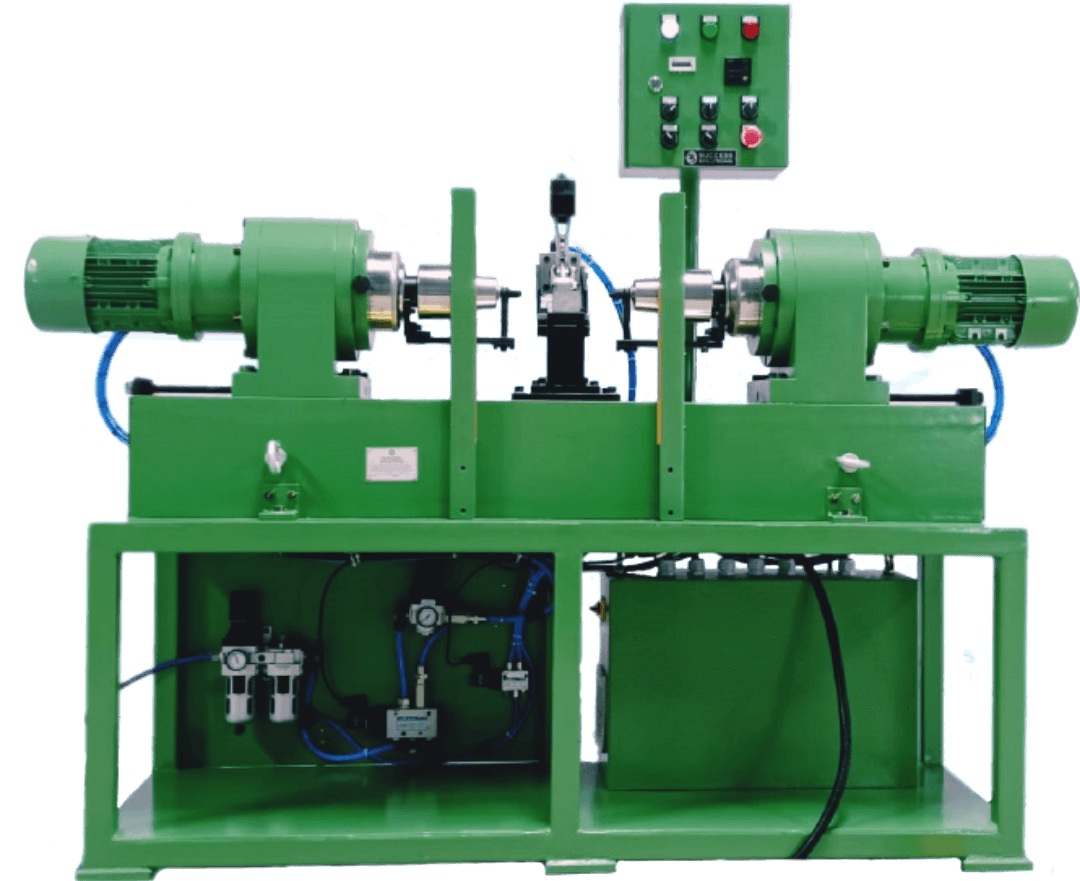

Dual Head Riveting Machine

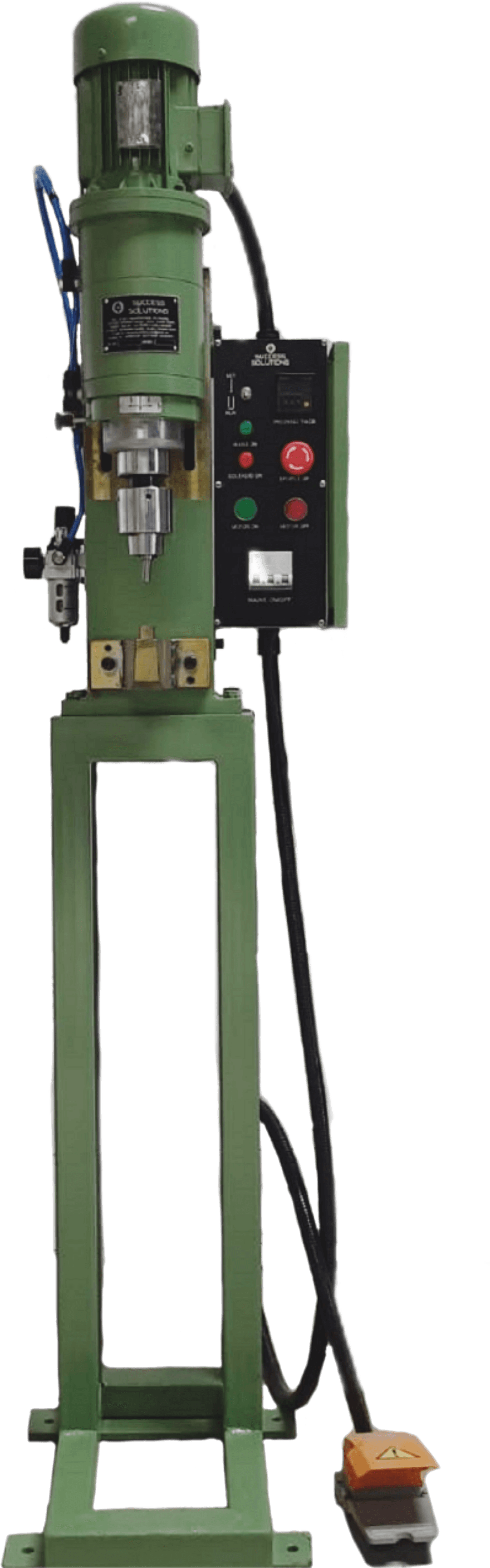

Pedestal Riveting Machine

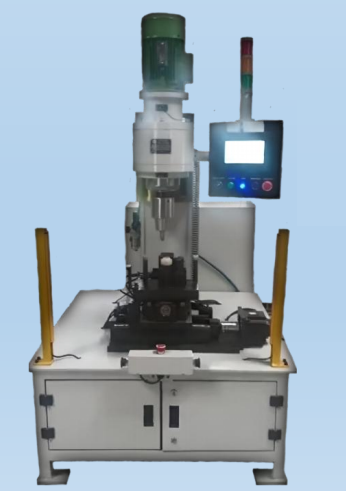

Riveting Machine with Extra Throat Depth

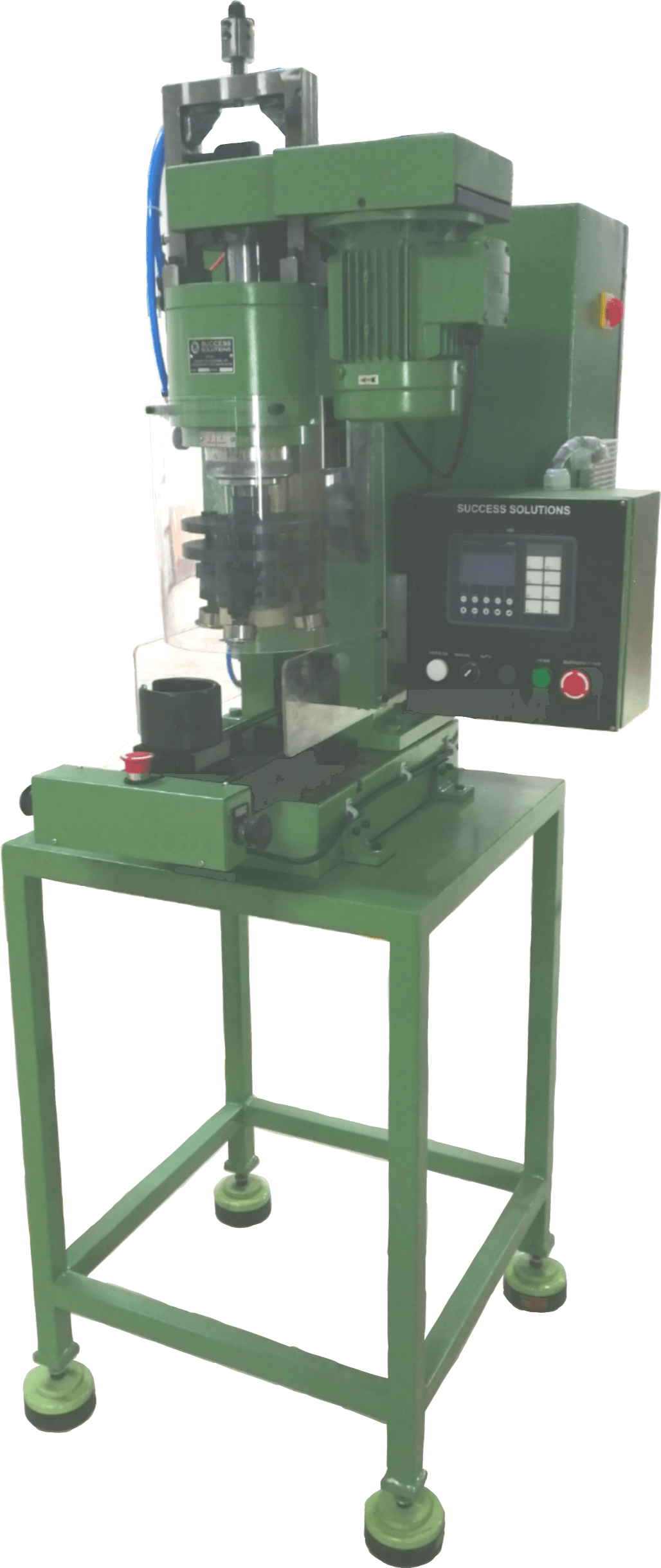

Seaming Machine
Riveting Machine with X-Y Axis Servo Slide

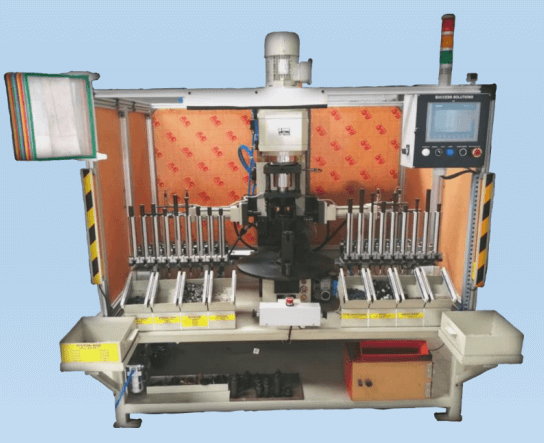

Special Purpose Riveting Machine

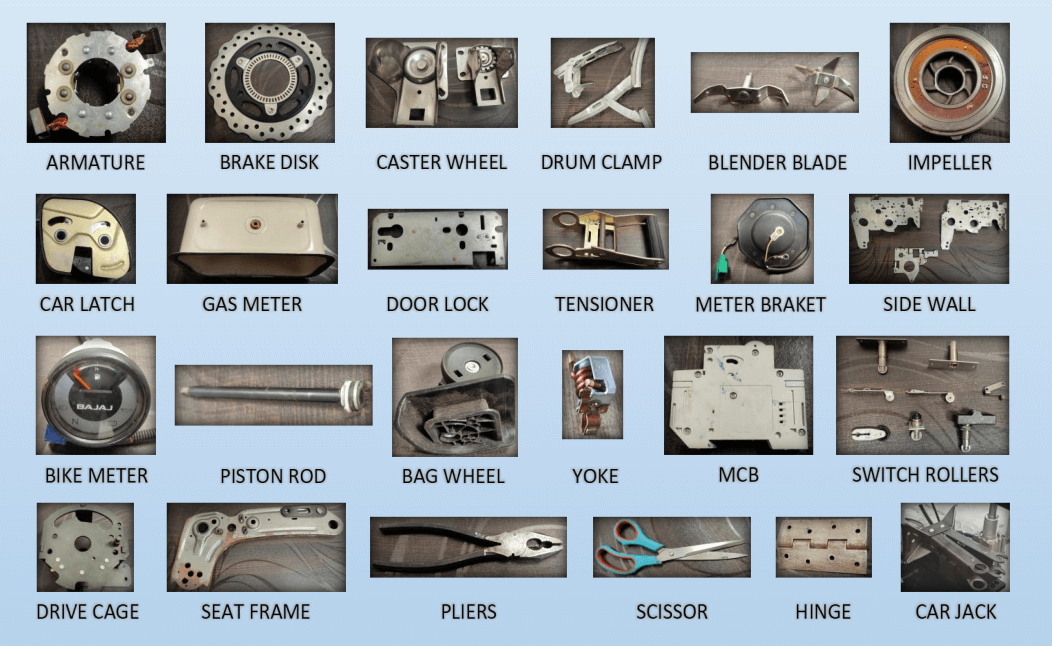

Applications
